Learning Objective

• Determine the relationship between the mass number of an atom, its atomic number, its atomic mass, and its number of subatomic particles

Key Points

• Neutral atoms of each element contain an equal number of protons and electrons.
• The number of protons determines an element’s atomic number and is used to distinguish one element from another.
• The number of neutrons is variable, resulting in isotopes, which are different forms of the same atom that vary only in the number of neutrons they possess.
• Together, the number of protons and the number of neutrons determine an element’s mass number.
• Since an element’s isotopes have slightly different mass numbers, the atomic mass is calculated by obtaining the mean of the mass numbers for its isotopes.

Terms

All elements are composed (made up) of atoms. It is impossible to divide or destroy an atom. All atoms of the same element are alike. (One atom of oxygen is like another atom of oxygen.) Atoms of different elements are different. (An atom of oxygen is different than an atom of hydrogen) Atoms of different elements combine to form a compound. Note that an element: consists of only one kind of atom, cannot be broken down into a simpler type of matter by either physical or chemical means, and; can exist as either atoms (e.g. Argon) or molecules (e.g., nitrogen). A molecule consists of two or more atoms of the same element, or different elements, that are chemically bound together. (b) two atoms of the same element must have the same number of protons. (c) it is impossible to determine accurately both the position and momentum of an electron simultaneously. (d) electrons of atoms in their ground states enter energetically equivalent sets of orbitals singly before they pair up in any orbital of the set. A.) atoms of isotopes of an element have different numbers of protons b.) atoms of the same element can have different masses c.) the nucleus of an atom has a positive charge d.) atoms. The number of electrons can also be different in atoms of the same element, thus producing ions (charged atoms). For instance, iron, Fe, can exist in its neutral state, or in the +2 and +3 ionic states. An element’s mass number (A) is the sum of the number of protons and the number of neutrons.

• atomic massThe average mass of an atom, taking into account all its naturally occurring isotopes.
• mass numberThe sum of the number of protons and the number of neutrons in an atom.
• atomic numberThe number of protons in an atom.

Atomic Number

Neutral atoms of an element contain an equal number of protons and electrons. The number of protons determines an element’s atomic number (Z) and distinguishes one element from another. For example, carbon’s atomic number (Z) is 6 because it has 6 protons. The number of neutrons can vary to produce isotopes, which are atoms of the same element that have different numbers of neutrons. The number of electrons can also be different in atoms of the same element, thus producing ions (charged atoms). For instance, iron, Fe, can exist in its neutral state, or in the +2 and +3 ionic states.

Mass Number

An element’s mass number (A) is the sum of the number of protons and the number of neutrons. The small contribution of mass from electrons is disregarded in calculating the mass number. This approximation of mass can be used to easily calculate how many neutrons an element has by simply subtracting the number of protons from the mass number. Protons and neutrons both weigh about one atomic mass unit or amu. Isotopes of the same element will have the same atomic number but different mass numbers.

Scientists determine the atomic mass by calculating the mean of the mass numbers for its naturally-occurring isotopes. Often, the resulting number contains a decimal. For example, the atomic mass of chlorine (Cl) is 35.45 amu because chlorine is composed of several isotopes, some (the majority) with an atomic mass of 35 amu (17 protons and 18 neutrons) and some with an atomic mass of 37 amu (17 protons and 20 neutrons).

Given an atomic number (Z) and mass number (A), you can find the number of protons, neutrons, and electrons in a neutral atom. For example, a lithium atom (Z=3, A=7 amu) contains three protons (found from Z), three electrons (as the number of protons is equal to the number of electrons in an atom), and four neutrons (7 – 3 = 4).

Boundless vets and curates high-quality, openly licensed content from around the Internet. This particular resource used the following sources:

http://www.boundless.com/
Boundless Learning
CC BY-SA 3.0.

http://en.wiktionary.org/wiki/atomic_number
Wiktionary
CC BY-SA 3.0.

http://www.boundless.com//biology/definition/atomic-mass–2
Boundless Learning
CC BY-SA 3.0.

http://en.wikibooks.org/wiki/A-level_Chemistry/OCR/Atoms,_Bonds_and_Groups/Atoms_and_Reactions/Atoms
Wikibooks
CC BY-SA 3.0.

http://cnx.org/content/m44390/latest/?collection=col11448/latest
OpenStax CNX
CC BY 3.0.

Learning Objectives

1. State the modern atomic theory.
2. Learn how atoms are constructed.

The smallest piece of an element that maintains the identity of that element is called an atom. Individual atoms are extremely small. It would take about fifty million atoms in a row to make a line that is 1 cm long. The period at the end of a printed sentence has several million atoms in it. Atoms are so small that it is difficult to believe that all matter is made from atoms—but it is.

The concept that atoms play a fundamental role in chemistry is formalized by the modern atomic theory, first stated by John Dalton, an English scientist, in 1808. It consists of three parts:

1. All matter is composed of atoms.
2. Atoms of the same element are the same; atoms of different elements are different.
3. Atoms combine in whole-number ratios to form compounds.

These concepts form the basis of chemistry.

Although the word atom comes from a Greek word that means “indivisible,” we understand now that atoms themselves are composed of smaller parts called subatomic particles. The first part to be discovered was the electron, a tiny subatomic particle with a negative charge. It is often represented as e⁻, with the right superscript showing the negative charge. Later, two larger particles were discovered. The proton is a more massive (but still tiny) subatomic particle with a positive charge, represented as p⁺. The neutron is a subatomic particle with about the same mass as a proton but no charge. It is represented as either n or n⁰. We now know that all atoms of all elements are composed of electrons, protons, and (with one exception) neutrons. Table 3.1 “Properties of the Three Subatomic Particles” summarizes the properties of these three subatomic particles.

Table 3.1 Properties of the Three Subatomic Particles

How are these particles arranged in atoms? They are not arranged at random. Experiments by Ernest Rutherford in England in the 1910s pointed to a nuclear model of the atom. The relatively massive protons and neutrons are collected in the center of an atom, in a region called the nucleus of the atom (plural nuclei). The electrons are outside the nucleus and spend their time orbiting in space about the nucleus. (See Figure 3.1 “The Structure of the Atom”.)

Figure 3.1 The Structure of the Atom

Atoms have protons and neutrons in the center, making the nucleus, while the electrons orbit the nucleus.

The modern atomic theory states that atoms of one element are the same, while atoms of different elements are different. What makes atoms of different elements different? The fundamental characteristic that all atoms of the same element share is the number of protons. All atoms of hydrogen have one and only one proton in the nucleus; all atoms of iron have 26 protons in the nucleus. This number of protons is so important to the identity of an atom that it is called the atomic number of the element. Thus, hydrogen has an atomic number of 1, while iron has an atomic number of 26. Each element has its own characteristic atomic number.

Atoms of the same element can have different numbers of neutrons, however. Atoms of the same element (i.e., atoms with the same number of protons) with different numbers of neutrons are called isotopes. Most naturally occurring elements exist as isotopes. For example, most hydrogen atoms have a single proton in their nucleus. However, a small number (about one in a million) of hydrogen atoms have a proton and a neutron in their nuclei. This particular isotope of hydrogen is called deuterium. A very rare form of hydrogen has one proton and two neutrons in the nucleus; this isotope of hydrogen is called tritium. The sum of the number of protons and neutrons in the nucleus is called the mass number of the isotope.

Neutral atoms have the same number of electrons as they have protons, so their overall charge is zero. However, as we shall see later, this will not always be the case.

Example 1

1. The most common carbon atoms have six protons and six neutrons in their nuclei. What are the atomic number and the mass number of these carbon atoms?
2. An isotope of uranium has an atomic number of 92 and a mass number of 235. What are the number of protons and neutrons in the nucleus of this atom?

Solution

1. If a carbon atom has six protons in its nucleus, its atomic number is 6. If it also has six neutrons in the nucleus, then the mass number is 6 + 6, or 12.
2. If the atomic number of uranium is 92, then that is the number of protons in the nucleus. Because the mass number is 235, then the number of neutrons in the nucleus is 235 − 92, or 143.

Test Yourself

The number of protons in the nucleus of a tin atom is 50, while the number of neutrons in the nucleus is 68. What are the atomic number and the mass number of this isotope?

Answer

Atomic number = 50, mass number = 118

When referring to an atom, we simply use the element’s name: the term sodium refers to the element as well as an atom of sodium. But it can be unwieldy to use the name of elements all the time. Instead, chemistry defines a symbol for each element. The atomic symbol is a one- or two-letter abbreviation of the name of the element. By convention, the first letter of an element’s symbol is always capitalized, while the second letter (if present) is lowercase. Thus, the symbol for hydrogen is H, the symbol for sodium is Na, and the symbol for nickel is Ni. Most symbols come from the English name of the element, although some symbols come from an element’s Latin name. (The symbol for sodium, Na, comes from its Latin name, natrium.) Table 3.2 “Names and Symbols of Common Elements” lists some common elements and their symbols. You should memorize the symbols in Table 3.2 “Names and Symbols of Common Elements”, as this is how we will be representing elements throughout chemistry.

Table 3.2 Names and Symbols of Common Elements

Element NameSymbol

The elements are grouped together in a special chart called the periodic table. A simple periodic table is shown in Figure 3.2 “A Simple Periodic Table”, while a more extensive one is presented in Chapter 17 “Appendix: Periodic Table of the Elements”. The elements on the periodic table are listed in order of ascending atomic number. The periodic table has a special shape that will become important to us when we consider the organization of electrons in atoms (see Chapter 8 “Electronic Structure”). One immediate use of the periodic table helps us identify metals and nonmetals. Nonmetals are in the upper right corner of the periodic table, on one side of the heavy line splitting the right-hand part of the chart. All other elements are metals.

Figure 3.2 A Simple Periodic Table

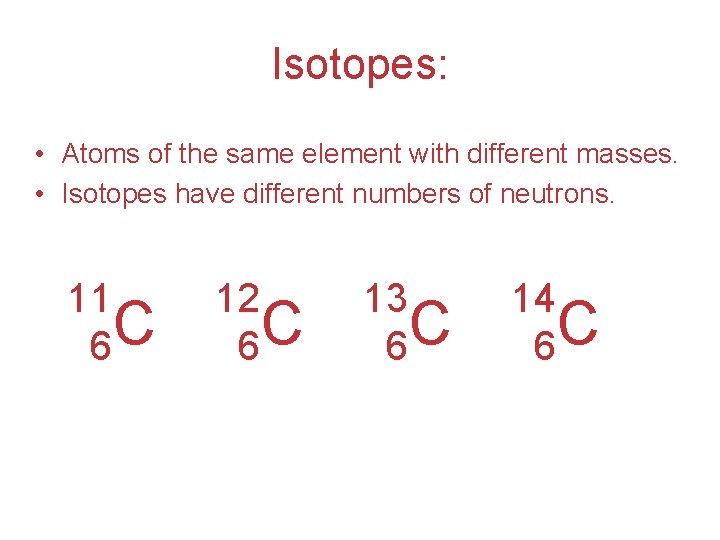

There is an easy way to represent isotopes using the atomic symbols. We use the construction

where X is the symbol of the element, A is the mass number, and Z is the atomic number. Thus, for the isotope of carbon that has 6 protons and 6 neutrons, the symbol is

where C is the symbol for the element, 6 represents the atomic number, and 12 represents the mass number.

Example 2

1. What is the symbol for an isotope of uranium that has an atomic number of 92 and a mass number of 235?
2. How many protons and neutrons are in ₂₆Fe?

Solution

1. The symbol for this isotope is
2. This iron atom has 26 protons and 56 − 26 = 30 neutrons.

Test Yourself

How many protons are in ₁₁N?

Answer

11 protons

It is also common to state the mass number after the name of an element to indicate a particular isotope. Carbon-12 represents an isotope of carbon with 6 protons and 6 neutrons, while uranium-238 is an isotope of uranium that has 146 neutrons.

Key Takeaways

• Chemistry is based on the modern atomic theory, which states that all matter is composed of atoms.
• Atoms themselves are composed of protons, neutrons, and electrons.
• Each element has its own atomic number, which is equal to the number of protons in its nucleus.
• Isotopes of an element contain different numbers of neutrons.
• Elements are represented by an atomic symbol.
• The periodic table is a chart that organizes all the elements.

Exercises

List the three statements that make up the modern atomic theory.

Which is larger, a proton or an electron?

What are the charges for each of the three subatomic particles?

Sketch a diagram of a boron atom, which has five protons and six neutrons in its nucleus.

Sketch a diagram of a helium atom, which has two protons and two neutrons in its nucleus.

Define atomic number. What is the atomic number for a boron atom?

Atoms Of The Same Element Can Differ In

Define isotope and give an example.

What is the difference between deuterium and tritium?

a)

_{b) 26}F and ₂₅M

_{c) 14}S and ₁₅P

14. Which pair represents isotopes?

a) ₂₀C and ₁₉K

_{b) 26}F and ₂₆F

c) ₉₂U and ₉₂U

15. Give complete symbols of each atom, including the atomic number and the mass number.

a) an oxygen atom with 8 protons and 8 neutrons

b) a potassium atom with 19 protons and 20 neutrons

c) a lithium atom with 3 protons and 4 neutrons

16. Give complete symbols of each atom, including the atomic number and the mass number.

a) a magnesium atom with 12 protons and 12 neutrons

b) a magnesium atom with 12 protons and 13 neutrons

c) a xenon atom with 54 protons and 77 neutrons

17. Americium-241 is an isotope used in smoke detectors. What is the complete symbol for this isotope?

18. Carbon-14 is an isotope used to perform radioactive dating tests on previously living material. What is the complete symbol for this isotope?

19. Give atomic symbols for each element.

a) sodium

b) argon

c) nitrogen

d) radon

20. Give atomic symbols for each element.

a) silver

b) gold

c) mercury

d) iodine

Atoms Of The Same Element That Differ In The Number Of Neutrons

21. Give the name of the element.

a) Si

b) Mn

c) Fe

d) Cr

22. Give the name of the element.

a) F

b) Cl

c) Br

d) I

Answers

1.

All matter is composed of atoms; atoms of the same element are the same, and atoms of different elements are different; atoms combine in whole-number ratios to form compounds.

3.

A proton is larger than an electron.

5.

Are All Atoms The Same

proton: 1+; electron: 1−; neutron: 0

7.

9.

The atomic number is the number of protons in a nucleus. Boron has an atomic number of five.

11.

Isotopes are atoms of the same element but with different numbers of neutrons. are examples.

13.

a) isotopes

b) not isotopes

c) not isotopes

15.

a)

b) ₁₉K

c)

17.

₉₅A

19.

a) Na

b) Ar

c) N

Atoms In An Element

d) Rn

21.

Atoms Of Different Elements

a) silicon

b) manganese

Atoms Of The Same Element Are Alike

c) iron

Atoms Of The Same Element That Have A Different Number Of Neutrons

d) chromium
